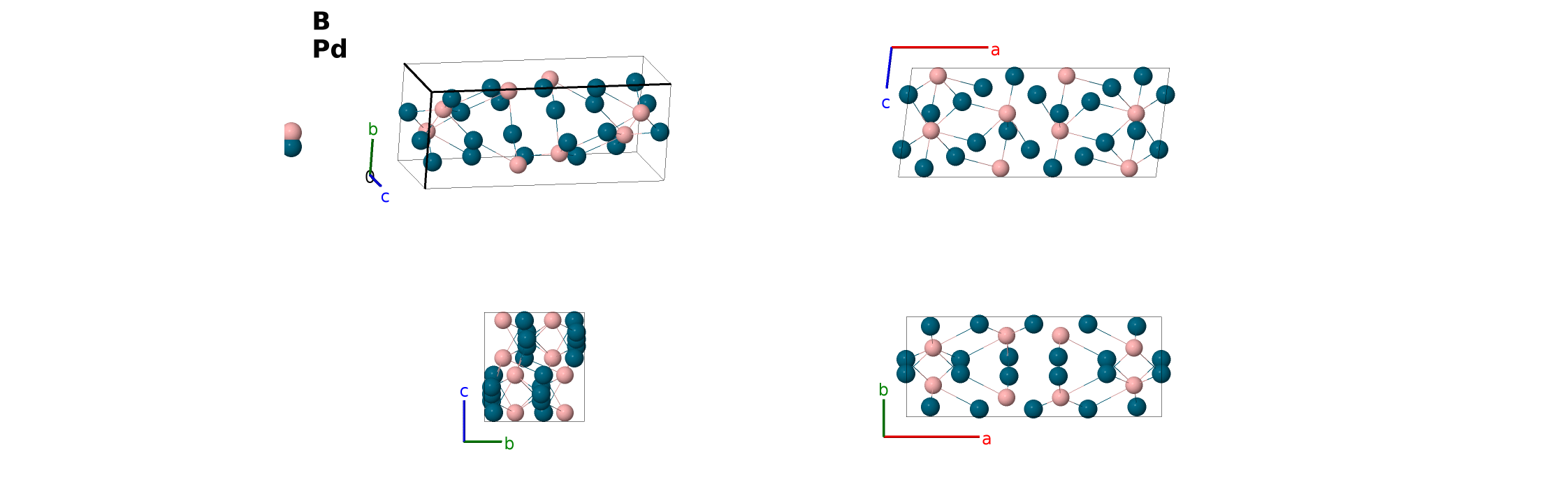

B$_{2}$Pd$_{5}$ Structure: A2B5_mC28_15_f_e2f-001
| Prototype | B$_{2}$Pd$_{5}$ |
| AFLOW prototype label | A2B5_mC28_15_f_e2f-001 |
| ICSD | 43513 |
| CCDC | 1612997 |
| Pearson symbol | mC28 |
| Space group number | 15 |
| Space group symbol | $C2/c$ |
| AFLOW prototype command |
aflow --proto=A2B5_mC28_15_f_e2f-001
--params=$a, \allowbreak b/a, \allowbreak c/a, \allowbreak \beta, \allowbreak y_{1}, \allowbreak x_{2}, \allowbreak y_{2}, \allowbreak z_{2}, \allowbreak x_{3}, \allowbreak y_{3}, \allowbreak z_{3}, \allowbreak x_{4}, \allowbreak y_{4}, \allowbreak z_{4}$ |
Other compounds with this structure
Au$_{2}$Ca$_{5}$, C$_{2}$Fe$_{5}$, C$_{2}$Mn$_{5}$, Co$_{2}$Nd$_{5}$, Co$_{2}$Pr$_{5}$, Co$_{2}$Sm$_{5}$, Ir$_{2}$Dy$_{5}$, Ir$_{2}$Er$_{5}$, Ir$_{2}$Gd$_{5}$, Ir$_{2}$Ho$_{5}$, Ir$_{2}$La$_{5}$, Ir$_{2}$Lu$_{5}$, Ir$_{2}$Nd$_{5}$, Ir$_{2}$Pr$_{5}$, Ir$_{2}$Sm$_{5}$, Ir$_{2}$Tb$_{5}$, Ir$_{2}$Tm$_{5}$, Ir$_{2}$Y$_{5}$, Pd$_{2}$Ca$_{5}$, Pd$_{2}$Eu$_{5}$, Pd$_{2}$Yb$_{5}$, Pt$_{2}$Ca$_{5}$, Pt$_{2}$Eu$_{5}$, Pt$_{2}$Yb$_{5}$, Rh$_{2}$Er$_{5}$, Rh$_{2}$Eu$_{5}$, Rh$_{2}$La$_{5}$, Rh$_{2}$Nd$_{5}$, Rh$_{2}$Sm$_{5}$, Ru$_{2}$Dy$_{5}$, Ru$_{2}$Er$_{5}$, Ru$_{2}$Gd$_{5}$, Ru$_{2}$Ho$_{5}$, Ru$_{2}$La$_{5}$, Ru$_{2}$Lu$_{5}$, Ru$_{2}$Nd$_{5}$, Ru$_{2}$Pr$_{5}$, Ru$_{2}$Sm$_{5}$, Ru$_{2}$Tb$_{5}$, Ru$_{2}$Tm$_{5}$, Ru$_{2}$Y$_{5}$
- Although the earliest entry in the ICSD for this structure refers to B$_{2}$Pd$_{5}$, they designate C$_{2}$Mn$_{5}$ as the prototype for this system.
- The ICSD lists Sm$_{2}$SCl$_{4}$ under this structure, but we find the two forms sufficiently different to justify listing that as a new prototype.
- B$_{2}$Pd$_{5}$ and Nb$_{2}$O$_{5}$ share the same AFLOW prototype label, A2B5_mC28_15_f_e2f, but have substantially different environments around each atom. The structures are generated by the same symmetry operations with different sets of parameters (
--params) specified in their corresponding CIF files.
\[ \begin{array}{ccc}

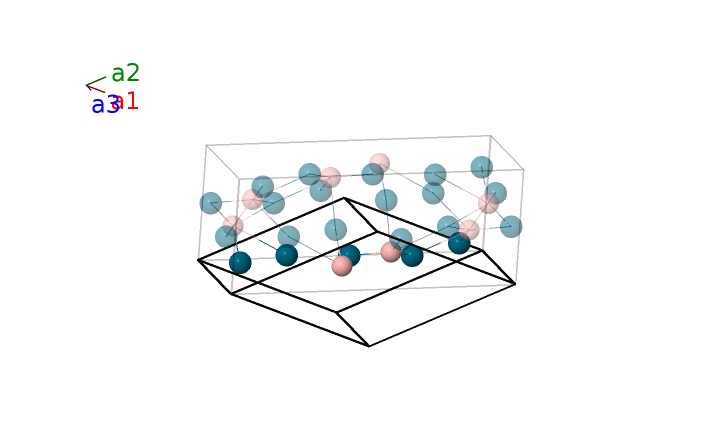

\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{1}{2}b \,\mathbf{\hat{y}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}b \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \cos{\beta} \,\mathbf{\hat{x}}+c \sin{\beta} \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $- y_{1} \, \mathbf{a}_{1}+y_{1} \, \mathbf{a}_{2}+\frac{1}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}c \cos{\beta} \,\mathbf{\hat{x}}+b y_{1} \,\mathbf{\hat{y}}+\frac{1}{4}c \sin{\beta} \,\mathbf{\hat{z}}$ | (4e) | Pd I |
| $\mathbf{B_{2}}$ | = | $y_{1} \, \mathbf{a}_{1}- y_{1} \, \mathbf{a}_{2}+\frac{3}{4} \, \mathbf{a}_{3}$ | = | $\frac{3}{4}c \cos{\beta} \,\mathbf{\hat{x}}- b y_{1} \,\mathbf{\hat{y}}+\frac{3}{4}c \sin{\beta} \,\mathbf{\hat{z}}$ | (4e) | Pd I |
| $\mathbf{B_{3}}$ | = | $\left(x_{2} - y_{2}\right) \, \mathbf{a}_{1}+\left(x_{2} + y_{2}\right) \, \mathbf{a}_{2}+z_{2} \, \mathbf{a}_{3}$ | = | $\left(a x_{2} + c z_{2} \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{2} \,\mathbf{\hat{y}}+c z_{2} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | B I |
| $\mathbf{B_{4}}$ | = | $- \left(x_{2} + y_{2}\right) \, \mathbf{a}_{1}- \left(x_{2} - y_{2}\right) \, \mathbf{a}_{2}- \left(z_{2} - \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $- \left(a x_{2} + c \left(z_{2} - \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{2} \,\mathbf{\hat{y}}- c \left(z_{2} - \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | B I |
| $\mathbf{B_{5}}$ | = | $- \left(x_{2} - y_{2}\right) \, \mathbf{a}_{1}- \left(x_{2} + y_{2}\right) \, \mathbf{a}_{2}- z_{2} \, \mathbf{a}_{3}$ | = | $- \left(a x_{2} + c z_{2} \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{2} \,\mathbf{\hat{y}}- c z_{2} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | B I |
| $\mathbf{B_{6}}$ | = | $\left(x_{2} + y_{2}\right) \, \mathbf{a}_{1}+\left(x_{2} - y_{2}\right) \, \mathbf{a}_{2}+\left(z_{2} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $\left(a x_{2} + c \left(z_{2} + \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{2} \,\mathbf{\hat{y}}+c \left(z_{2} + \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | B I |
| $\mathbf{B_{7}}$ | = | $\left(x_{3} - y_{3}\right) \, \mathbf{a}_{1}+\left(x_{3} + y_{3}\right) \, \mathbf{a}_{2}+z_{3} \, \mathbf{a}_{3}$ | = | $\left(a x_{3} + c z_{3} \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{3} \,\mathbf{\hat{y}}+c z_{3} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd II |
| $\mathbf{B_{8}}$ | = | $- \left(x_{3} + y_{3}\right) \, \mathbf{a}_{1}- \left(x_{3} - y_{3}\right) \, \mathbf{a}_{2}- \left(z_{3} - \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $- \left(a x_{3} + c \left(z_{3} - \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{3} \,\mathbf{\hat{y}}- c \left(z_{3} - \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd II |
| $\mathbf{B_{9}}$ | = | $- \left(x_{3} - y_{3}\right) \, \mathbf{a}_{1}- \left(x_{3} + y_{3}\right) \, \mathbf{a}_{2}- z_{3} \, \mathbf{a}_{3}$ | = | $- \left(a x_{3} + c z_{3} \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{3} \,\mathbf{\hat{y}}- c z_{3} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd II |
| $\mathbf{B_{10}}$ | = | $\left(x_{3} + y_{3}\right) \, \mathbf{a}_{1}+\left(x_{3} - y_{3}\right) \, \mathbf{a}_{2}+\left(z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $\left(a x_{3} + c \left(z_{3} + \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{3} \,\mathbf{\hat{y}}+c \left(z_{3} + \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd II |
| $\mathbf{B_{11}}$ | = | $\left(x_{4} - y_{4}\right) \, \mathbf{a}_{1}+\left(x_{4} + y_{4}\right) \, \mathbf{a}_{2}+z_{4} \, \mathbf{a}_{3}$ | = | $\left(a x_{4} + c z_{4} \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{4} \,\mathbf{\hat{y}}+c z_{4} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd III |
| $\mathbf{B_{12}}$ | = | $- \left(x_{4} + y_{4}\right) \, \mathbf{a}_{1}- \left(x_{4} - y_{4}\right) \, \mathbf{a}_{2}- \left(z_{4} - \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $- \left(a x_{4} + c \left(z_{4} - \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}+b y_{4} \,\mathbf{\hat{y}}- c \left(z_{4} - \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd III |
| $\mathbf{B_{13}}$ | = | $- \left(x_{4} - y_{4}\right) \, \mathbf{a}_{1}- \left(x_{4} + y_{4}\right) \, \mathbf{a}_{2}- z_{4} \, \mathbf{a}_{3}$ | = | $- \left(a x_{4} + c z_{4} \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{4} \,\mathbf{\hat{y}}- c z_{4} \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd III |
| $\mathbf{B_{14}}$ | = | $\left(x_{4} + y_{4}\right) \, \mathbf{a}_{1}+\left(x_{4} - y_{4}\right) \, \mathbf{a}_{2}+\left(z_{4} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $\left(a x_{4} + c \left(z_{4} + \frac{1}{2}\right) \cos{\beta}\right) \,\mathbf{\hat{x}}- b y_{4} \,\mathbf{\hat{y}}+c \left(z_{4} + \frac{1}{2}\right) \sin{\beta} \,\mathbf{\hat{z}}$ | (8f) | Pd III |
References
- E. Stenberg, The Crystal Structures of Pd$_5$B$_2$, (Mn$_5$C$_2$), and Pd$_3$B, Acta Chem. Scand. 15, 861–870 (1961), doi:10.3891/acta.chem.scand.15-0861.
First cited in
- M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 1, Comp. Mat. Sci. 136, S1-S828 (2017). (doi=10.1016/j.commatsci.2017.01.017)
Geometry files
Prototype Generator
aflow --proto=A2B5_mC28_15_f_e2f --params=$a,b/a,c/a,\beta,y_{1},x_{2},y_{2},z_{2},x_{3},y_{3},z_{3},x_{4},y_{4},z_{4}$
